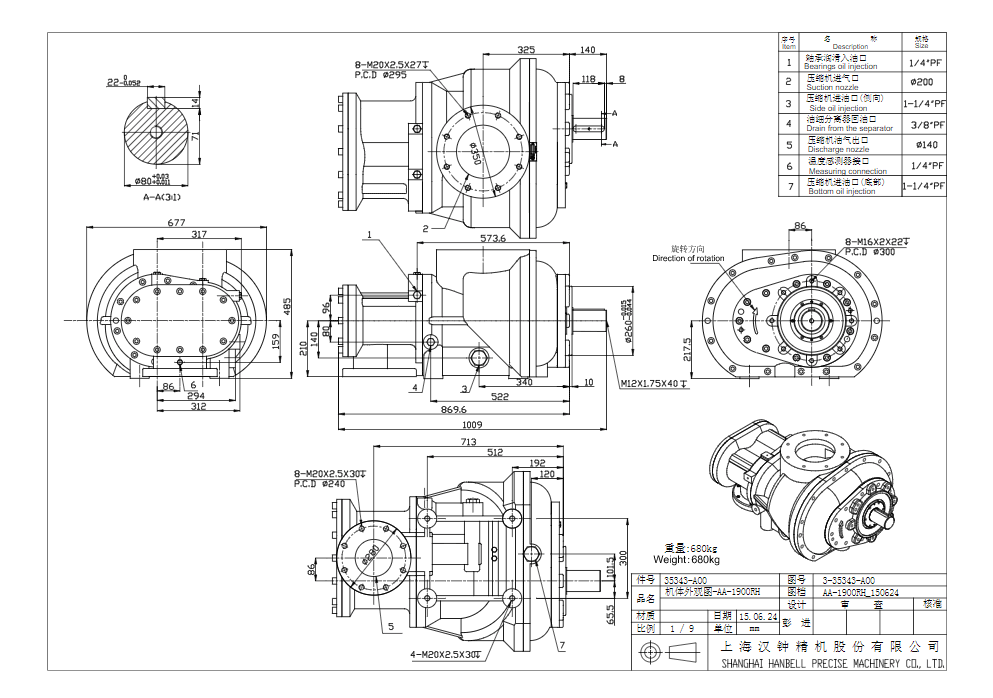

主机AA-1900RH
主机AA-1900RH
Ø 应用压力范围： 6.0-16.0 bar
Ø 八颗轴承设计，寿命长、稳定性好
Ø 高应用压力
Ø 市场应用15多年，好口碑，对标国际品牌机头
主机AA-1900RH
Technical Data (8 bar.g) | ||||||
Rated power | Model | Rotation speed | Air flow | Shaft Power | Power consumption | S.F. |
(KW) | (rpm) | (m3/min) | (KW) | (kw/m3/min) | ||
7.5 | AA-077(Belt) | 3420 | 1 | 7.3 | 7.4 | 0.97 |
11 | AA-077(Belt) | 5200 | 1.5 | 11 | 7.2 | 1 |
15 | AA-130(Belt) | 3420 | 2 | 14.6 | 7.2 | 0.97 |
18.5 | AA-210 | 2950 | 2.9 | 19.4 | 6.7 | 1.05 |
22 | AA-240 | 2950 | 3.5 | 22.7 | 6.4 | 1.03 |
37 | AA-420 | 2950 | 6.2 | 38.2 | 6.1 | 1.03 |
45 | AA-480R | 2950 | 7.1 | 47.5 | 6.7 | 1.05 |
55 | AA-600R | 2950 | 9.1 | 57.6 | 6.3 | 1.05 |
75 | AA-780R | 2950 | 11.9 | 73.3 | 6.1 | 0.98 |
90 | AA-1030R | 2950 | 15.7 | 104.5 | 6.6 | 1.08 |
110 | AA-1200R | 2950 | 19.4 | 115.5 | 5.9 | 1.05 |
132 | AA-1320 | 2950 | 21.4 | 139.5 | 6.5 | 1.06 |
160 | AA-1560 | 2950 | 23.9 | 151.6 | 6.3 | 0.95 |
185 | AA-1900R | 2950 | 29.8 | 186.6 | 6.2 | 1.01 |
250 | AA-2600 | 2950 | 40.7 | 260.6 | 6.4 | 1.04 |
315 | AA-3300 | 2950 | 50 | 323.4 | 6.4 | 1.03 |
355 | AA-5600G | 1450 | 60 | 376 | 6.26 | 1.06 |
