JOY MACHINERY (SHANGHAI) CO., LTD.
DRY OIL-FREE SCREW AIR COMPRESSOR

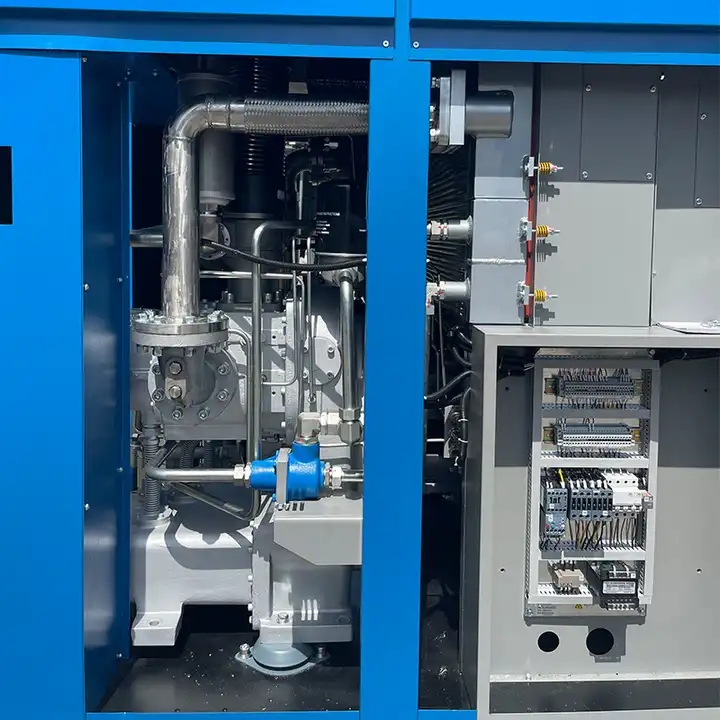

01 Dry double stage air end
█ The air compression chamber is separated from the oil chamber. The air side adopts a wear-free sealing system with stainless steel spring-loaded metal ring, and the lubricating oil side adopts a wear-free sealing system with a copper labyrinth seal, and the two do not contact;
█ The secondary rotor is made of stainless steel with strong corrosion resistance;
█ The rotor of the air end and the inner wall of the compression chamber are coated with a strong super coating to prevent corrosion and coating peeling, so that the air end has a longer life;
█ The first-stage casing of the air end is directly cooled by air, and the casing of the second-stage air end is cooled by filtered lubricating oil to avoid the generation of scale and ensure reliable operation.
02 Special motor for air compressor
█ Special motor for air compressor, imported bearing, protection grade IP54, insulation grade F, suitable for harsh environments such as large dust and high temperature;
█ IE3 high-efficiency motor, consumes less electricity and saves costs;
█ The motor is designed with a large margin, and the starting torque is large, which can meet the use of various working conditions.
03 Coupling
█ Torsion elastic coupling, with failure protection function, can effectively damp and reduce vibration and shock generated during operation;
█ The elastic body is only under pressure and can bear a larger load, and the drum-shaped teeth of the elastic body can avoid stress concentration.
04 Intelligent Control
█ Intelligent control system with good man-machine communication interface;
█ Special program, with multiple pressure sensors and temperature sensors, can automatically detect the running state of the machine, without the need for special personnel to take care of it;
█ emergency stop;
█ The Internet of Things can be configured, and the operating status of the unit can be checked on the mobile phone;
05 Quiet centrifugal fan system
█ Using centrifugal fan and cooler, the cooling effect is good;
█ Compared with the axial flow fan, the centrifugal fan has higher wind pressure, lower noise and more energy saving;
█ Due to the high wind pressure, the cooler and filter are not easy to be blocked.
06 Three filters
█ Air filter: large filter area, low intake pressure loss and high energy efficiency;
█ Oil filter: large margin design, high filtering precision and good durability;
█ Oil separator: high filtration precision.
07 Valves
█ Intake valve: Hydraulic normally closed butterfly valve is selected for reliable control;
█ Temperature control valve: The unit is equipped with a temperature control valve to ensure that it is more convenient to start the unit and run more smoothly in a low temperature environment.
Process and Principle
There is a pair of precision-machined male and female rotors in the compressor housing (the male and female rotors do not touch);
The motor drives the male rotor through the transmission device, and then the female rotor synchronous gear is driven by the synchronous gear at the other end of the male rotor, so that the female rotor rotates, so that the air entering the compression chamber is compressed between the tooth slots, and the compressed air is also driven by one end at the same time. to the other end.
The gears and bearings of the compressor are lubricated with special lubricating oil. The oil seal in the main engine prevents the lubricating oil in the bearing cavity from entering the compression cavity, ensuring that the output air is absolutely oil-free, while the air seal prevents the air in the compression cavity from leaking to the outside.
Application scope of piston air compressor, air compressor and screw air compressor | |
Air compressors are one kind of common power equipment. In simple terms, it is a device that compresses air to generate potential energy. Therefore, it has a wide range of applications. The common applications mainly include the following industries: | |
Mine | Air for ventilation, drilling large holes, removing water with compressed air, filtering fines, pneumatic hoist, driving rock drilling rigs, pneumatic drilling, blowing holes, piling machines, rock drilling machines, etc. |
Factory | Air jet cleaning, driven tools (steam hammers, concrete shakers, drills, grinders, cranes, paving breakers, riveting guns, descaling, pipe reels, wrenches), sandblasting, metallization, painting, water spray systems |
Sheet metal | Stirring solutions, transporting chips, jet cleaning, driving packaging presses, driving platen chuck clutches and positioners, air tools, finishing hammers, air picks, drills, grinders, hoists and lifters, combination tools, riveters, Sand blasting, lubricant spraying, paint spraying, container leak detection |
Forging | Blown oxide surface, furnace door air curtain, hoist and lift, drive bending and straightening machine, drive clutch brake and clamping device, drive forging hammer, fuel burner |
Casting | Hot metal truck positioning, cleaning equipment, conveying sand, driving pneumatic tools, sanding machines, grinding machines, hoists and lifts, air picks, tamping machines, steel brushes, sandblasting, sand screening, mud blasting cores |
Quarry | Lifting and handling materials, rock drilling rigs, gas supply, drilling and blasting machines, rock drilling machines, hand drills, water pumps |
Rubber industry | Cleaning of moulds and machinery, air lift, demolding, mould opening, pneumatic control, spraying |
Textile industry | Mixing liquids, air lifts, wetting, running accumulators, spraying liquids, spraying systems, infusions |
Chemical fiber | Gas for instrumentation, gas for silk suction gun and power source for printing and dyeing, etc. |
Cement | Storage ventilation, cement slurry mixing, cement bag cleaning and sealing, raw material mixing, dump truck, cleaning equipment, clinker cooling, cement and coal conveying, cement kiln cleaning, vehicle and ship loading and unloading, lifting and hoisting, pneumatic control |
Chemical | Aeration and agitation, separation tower gas, cleaning equipment, combustion gas, conveying, lifting liquid, spraying, cleaning pipeline, pneumatic control, process gas, conveying liquid |
Thermal power | Instrumentation, desulfurization and denitrification, blowing and cleaning pipes, bag dust removal, blowing off soot, cleaning boiler and condenser pipes, jet cleaning, transferring pulverized coal, removing sewage, pneumatic control, auxiliary equipment control, coal-fired transportation, industrial Water treatment equipment, etc. |
Hydropower | Engine control, lock maintenance, drive controller, drive lubrication pump, drive lock, start control, cleaning garbage net |
Beverage | Bottle washing machines, canning machines, interior spraying of wine barrels, gas for the food industry |
Food | Stirring liquid, gas (oxygen) for fermentation tank, cleaning equipment with nozzle, cleaning container with nozzle, material conveying, material filling, fermentation, food dehydration, filtration |
Glass industry | Blowing bottles and glassware, blowing lamps and electron tubes, supporting combustion of glass liquid, transferring raw materials, glass etching, clearing and drilling, conveying glass, pneumatic control, vacuum hanging plate, purging of residual material in the oil gun, cooling and cooling of the gun body, Bag dust removal and filter cartridge backflushing. |
Steel | Stirring solution, gas for deoxidation, gas for high-level converter, positioning of charging car, drilling of sediment chamber, unloading bag, cleaning of open-hearth furnace flue, driving clutch and brake, driving furnace door, driving charging and conveying device, driving lubrication system, Drives pneumatic tools, picks, grinders, hoists and lifts, sandblasting, blast furnace blasting, vacuum degassing |
Wood and furniture | Jet cleaning, air hoisting, impregnated wood, bending and straightening, clamping and clamping, pneumatic tools, engraving tools, drilling rigs, polishing machines, sanding machines, sandblasting, painting, water spraying |
Refinery | Combustion gases, draining and cleaning oil circuits, hoisting and hoisting, drive control systems, catalyst recirculation, sandblasting, painting |
Paper | Air cleaning equipment, hoists and lifts, pool anti-icing, roll feeding, pressed paper products, drive clutches, drive paper breakers, feed through machines, pneumatic controls, head case pressurization, head case removal, waste paper removal , vacuum drying |
Pharmaceutical | Stirring liquids, gas (oxygen) for fermentation of antibiotics, conveying raw materials, mixing and stirring raw materials, driving centrifuges, pneumatic control, jet pulverization, spray drying, transferring liquids, vacuum drying, vaporization and instrument gas |
Plastic | Cleaning of jet equipment, casting blanks, inflation of air objects for molding, inflation into tubes during extrusion, vacuum or pressure molding, cylinder operation |
Printing | Stir the solution, pack paper, lift |
Injection mold | Air assisted injection molding |
Metallurgical | Metal smelting, sintering, cold rolling, hot rolling, bundling and packaging of wire rods and sheets, production lines for continuous casting and rolling, etc. |
3D printing | Base room waste heat, particle, powder purge |
Military | Packaging of explosives, automatic control devices of torpedoes, automation equipment of ships, equipment purging, instrument gas, power execution and other operations. |
Tobacco | It is also used in power execution equipment such as wire injection machines, cigarette rolls, splicing and packaging, as well as instruments and equipment cleaning. |
Medical chamber | Supply and exhaust (oxygen) systems for air pressurized chambers and pure oxygen pressurized chambers |
Automobile | Spray Washing Machines, Drive Assembly Tools, Lifting, Pneumatic Controls, Tire Inflation, Forging Shops, Foundry Shops, Sheet Metal Shops |
Aircraft | Blasting machines, stripping, driving assembly tools, drilling rigs, steam hammers, hoists, combination tools, reamers, riveting guns, screwdrivers, forging hammers, metal forming presses, sandblasting, painting |
Aerospace | The rocket is purged with high-pressure nitrogen, and the oil-free high-pressure chamber is purged. In the aerospace industry, in addition to being able to withstand irradiation and high temperature, pneumatic devices can also withstand large acceleration speeds, so they have been widely used in the control of modern aircraft, rockets and missiles. |
JOY MACHINERY (SHANGHAI) CO., LTD.
DRY OIL-FREE SCREW AIR COMPRESSOR
Model | Air Capacity | Pressure | Power | Noise | Dimension(mm) | Outlet | Weight | |
N.m3/min | Mpa | KW | HP | DB | Length*Width*Height | KG | ||
JMWD-45A JMWD-45W | 7.60 | 0.7 | 45 | 60 | 69±2 | 2200*1400*2000(A) 2300*1500*1720(W) | DN50 | 2600 2650 |
7.60 | 0.8 | |||||||
6.90 | 1.0 | |||||||
JMWD-55A JMWD-55W | 9.60 | 0.7 | 55 | 75 | 69±2 | 2200*1400*2000(A) 2300*1500*1720(W) | DN50 | 2800 2850 |
8.90 | 0.8 | |||||||
7.90 | 1.0 | |||||||
JMWD-75A JMWD-75W | 12.50 | 0.7 | 75 | 100 | 70±2 | 2200*1400*2000(A) 2300*1500*1720(W) | DN50 | 2900 2850 |
12.50 | 0.8 | |||||||
11.20 | 1.0 | |||||||
JMWD-90A JMWD-90W | 16.00 | 0.7 | 90 | 120 | 71±2 | 2200*1400*2000(A) 2300*1500*1720(W) | DN50 | 3100 2850 |
14.50 | 0.8 | |||||||
12.90 | 1.0 | |||||||
JMWD-110A JMWD-110W | 19.50 | 0.7 | 110 | 150 | 71±2 | 3000*1990*2180(A) 2700*1800*1830(W) | DN65 | 3400 3450 |
19.50 | 0.8 | |||||||
16.20 | 1.0 | |||||||
JMWD-132A JMWD-132W | 23.00 | 0.7 | 132 | 180 | 73±2 | 3000*1990*2180(A) 2700*1800*1830(W) | DN65 | 3450 3500 |
23.00 | 0.8 | |||||||
20.00 | 1.0 | |||||||
JMWD-160A JMWD-160W | 26.00 | 0.7 | 160 | 215 | 73±2 | 3000*1990*2180(A) | DN65 | 3550 3650 |
26.00 | 0.8 | |||||||
23.50 | 1.0 | |||||||
JMWD-185A JMWD-185W | 30.00 | 0.7 | 185 | 250 | 74±2 | 3000*1990*2180(A) 2700*1800*1830(W) | DN65 | 3950 4050 |
30.00 | 0.8 | |||||||
26.00 | 1.0 | |||||||
JMWD-200A JMWD-220W | 33.60 | 0.7 | 200 | 270 | 74±2 | 3100*2100*2065(W) | DN100 | 4500 |
33.60 | 0.8 | |||||||
29.20 | 1.0 | |||||||
JMWD-250A JMWD-250W | 46.00 | 0.7 | 250 | 350 | 74±2 | 3100*2100*2065(W) | DN100 | 5200 |
42.00 | 0.8 | |||||||
37.60 | 1.0 | |||||||
Notice:
In the model JMWD-**A, suffix "A" stands for compressors cooled by air, suffix "W" stands for compressors cooled by water;
Special voltage can be made by negotiation.
