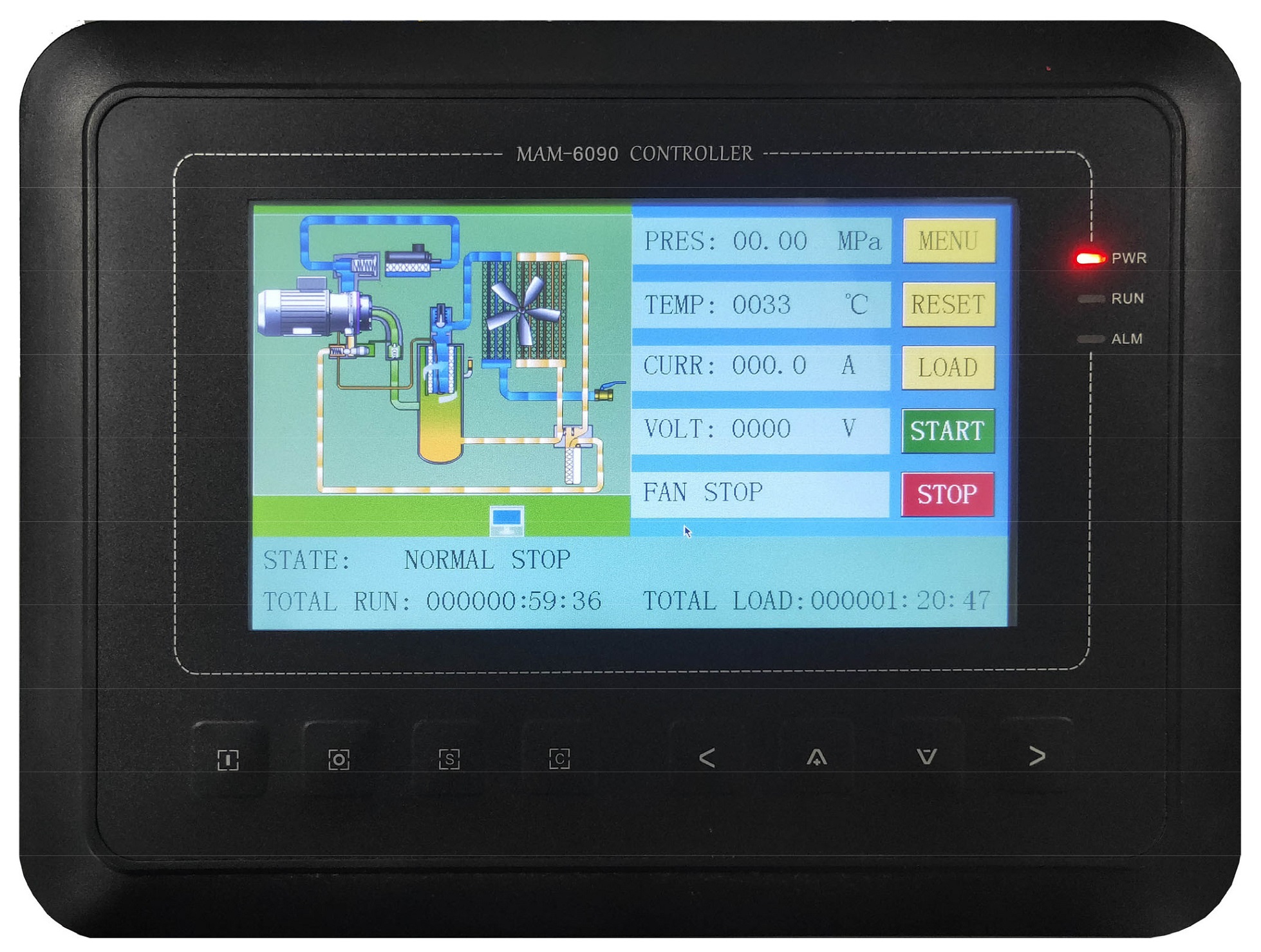

MAM6090 power frequency all-in-one display

MAM6090 power frequency all-in-one display

Performance characteristics:

It is applicable to power frequency screw air compressor, and it is all-in-one display.

MAM6090 power frequency all-in-one display

Product model: MAM-6090

Product size: 248 * 186 * 65.3mm

Opening size: 230 * 160mm

Display size: 153 * 85mm

Product material: plastic

Working power supply: ac16-28v / 20W

Switching value: 8

Relay output: 10

Pressure 4-20mA input: 2

Temperature (PT100 / PT1000): 3

Current: 2

Phase sequence: 1

Plug or screw terminal: screw

Frequency conversion or not: optional

Support RS485 communication: optional

Pressure transmitter or pressure switch: optional

Voltage detection: optional

Manual download:

MAM6090 En.pdf

Schematic diagram download:

MAM6090 En - Schematic diagram.pdf
