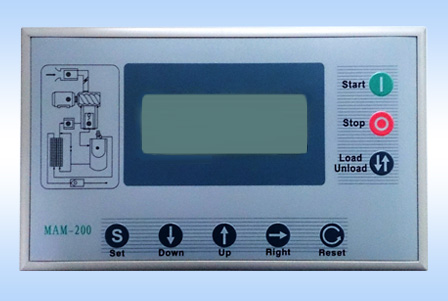

KY02SVF+MAM200C   Variable frequency display+main controller

KY02SVF+MAM200C   Variable frequency display+main controller

Performance characteristics:

It is applicable to variable frequency screw air compressor, and its main controller and display panel are designed separately.

KY02SVF+MAM200C   Variable frequency display+main controller

Model：KY02SVF+MAM200C

Main controller size：145*115*71mm

Main controller hole size：135*105mm

Display size：250*150*54mm

Display hole size：239*139mm

Display size：32*98mm

Material：Plastic

Working power：100-240V/20W

Switching value：7

Relay output：10

Pressure 4-20mA input：2

Temperature（PT100/PT1000）：2

Current：3

Phase sequence：1

Plugging or screw terminal：screw terminal

Frenquency conversion or not：support

Whether RS485 communication is supported：optional

Pressure transmitter or pressure switch : optional

Voltage detection or not: not support

Maual download:

KY02SVF+MAM200C En.pdf

Electrical diagram download:

KY02SVF+MAM200C En Electrical diagram.pdf
