The working principle and characteristics of oil-water lubricated air compressors

At present, oil-water lubricated screw air compressors are a new and high-end type of air compressor, which differs greatly from oil-lubricated screw air compressors in terms of working principle and lubrication method. Below is a detailed introduction to the working principle and advantages of oil-water lubricated screw air compressors.

Working principle of oil-water lubricated screw air compressor

Basic principle: A cylindrical screw and two symmetrically configured planar star wheels form a meshing pair. Usually, there are six grooves on the screw, and each star gear tooth divides the groove it meshes with into two spaces: upper and lower. Implement the working process of each compressor. Due to its two star gear teeth, a single screw compressor is equivalent to a six cylinder double acting piston compressor, operating efficiently. Due to the symmetrical arrangement of cylindrical screws and star wheels, their axial and radial forces can cancel each other out, giving them good balance. This is the reason why oil-free air compressors can operate normally for a long time and have minimal noise.

Characteristics and advantages of oil-water lubricated screw air compressors

1. Reasonable structure with ideal force balance

The oil-free water lubricated screw air compressor is equipped with a star wheel body on both sides of the screw, symmetrically arranged, so that the oil-free air compressor not only has no unbalanced inertia force, but also the axial and radial forces used on the screw cancel each other, making it have ideal force balance.

2. High efficiency

The oil-water lubricated screw air compressor theoretically has no clearance volume, a large single unit capacity, and ideal isothermal compression. Due to the good thermal conductivity of water, the lubricating water continuously circulates and injects into the compression chamber, and the temperature is generally maintained at 45 ℃, close to isothermal compression.

3. Oil free

Replacing lubricating oil with water achieves lubrication, cooling, sealing, noise reduction, and other functions, providing high-quality oil-free air without pollution. The discharged water does not require special treatment and meets environmental requirements.

4. Low noise and vibration

The oil-water lubricated screw air compressor has an excellent power balance system, which can effectively control the vibration source and ensure stable operation without special requirements for the foundation, resulting in low operating noise

5. Long lifespan of the host

The symmetry of the structure and the possibility of setting flow holes balance the radial and axial forces generated during the operation of the compressor. Therefore, the rotor bearing load is small and can operate for 50000 hours. The star wheel made of resin material can operate for 20-30000 hours, and the service life of the air compressor is long.

JOY MACHINERY always adheres to the corporate vision of "building a leading brand of oil-free air compressors in the world", and hopes to provide high-quality, clean and safe air for food, beverage and other production enterprises on the road of oil-free air compressor research and development, production and sales. Source protection, and also contribute a little bit to people's health and safety.

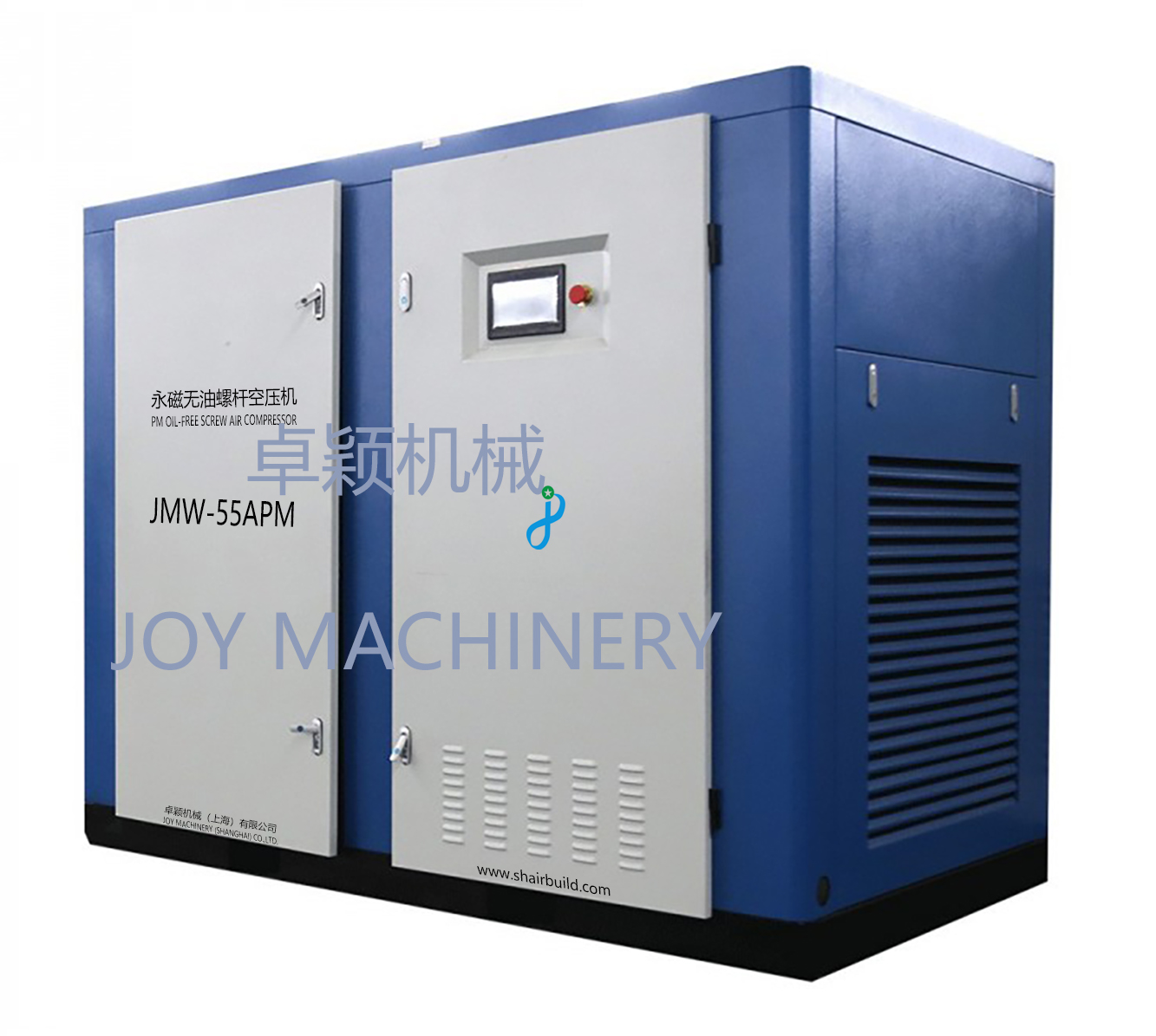

JOY MACHINERY oil-free air compressor series is widely used in the food and beverage processing industry due to its clean air source and continuous and stable gas transmission. If you have any needs, please contact us! JOY Machinery (Shanghai) Co., Ltd. has a professional design team with rich experience and welcomes customization. Diversified products can meet most applications and meet your one-stop shopping needs. The air compressor series includes power frequency screw air compressors, variable frequency screw air compressors, permanent magnet variable frequency screw air compressors, two-stage compression screw air compressors, integrated screw air compressors, laser cutting air compressors, medium and high pressure air compressors. Air compressors, oil-free water-lubricated screw air compressors (special oil-free screw air compressors for the medical industry), diesel-moving screw air compressors, electric-moving screw air compressors and other products.

"Customer satisfaction is our unswerving pursuit", "High quality, good services", and strive to make every customer use the good products they like.
